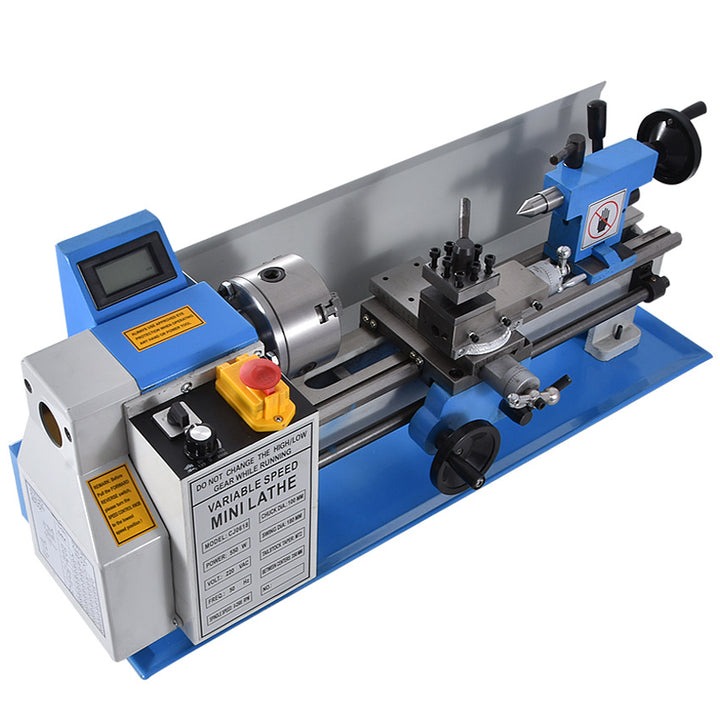

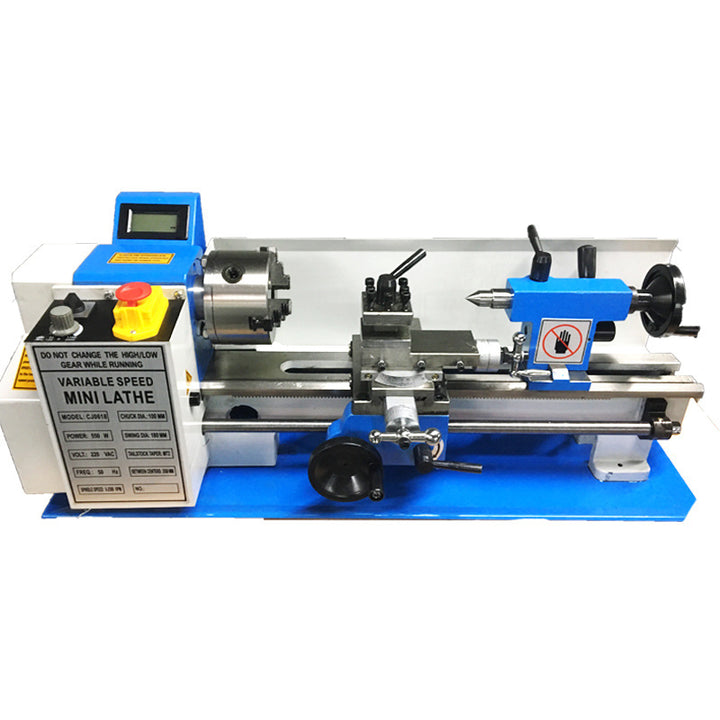

Metal Lathe,Precision Bench Top Mini Metal Lathe 550W, Metal Lathe Variable Speed 50-2500 RPM Nylon Gear With A Movable Lamp for Precision Parts Processing
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Product Specifications：
Model: CJ-0618
Voltage : 220 V/110 V
Motor power: 750 W brushless motor
Maximum swing diameter of the bed: 180 mm
Maximum turning diameter on the pallet: 110 mm
Distance between centers: 350 mm
Bed width:100 mm
Chuck diameter: 100 mm

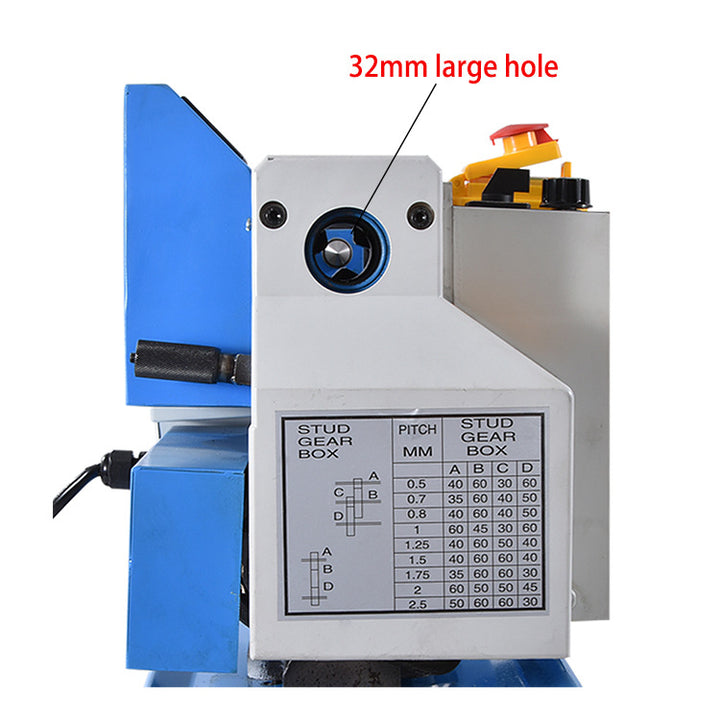

Spindle through hole: 21 mm/32 mm
Speed control mode: Stepless speed change
Spindle speed: 50-2500 rpm
Metric thread range: 0.5-2.5 mm
Tool holder station: Four-position tool holder
Maximum travel of the knife holder: 35 mm
Medium pallet maximum stroke: 60 mm
Maximum tool travel of large support plate: 185 mm
Tail stock sleeve stroke: 40 mm
Tailstock taper: MT2
Weight: 48 kg
Package size length width height: 880 mm*350 mm*400 mm
Net weight: 58.2 kg
Features & Details
- Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 750W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.

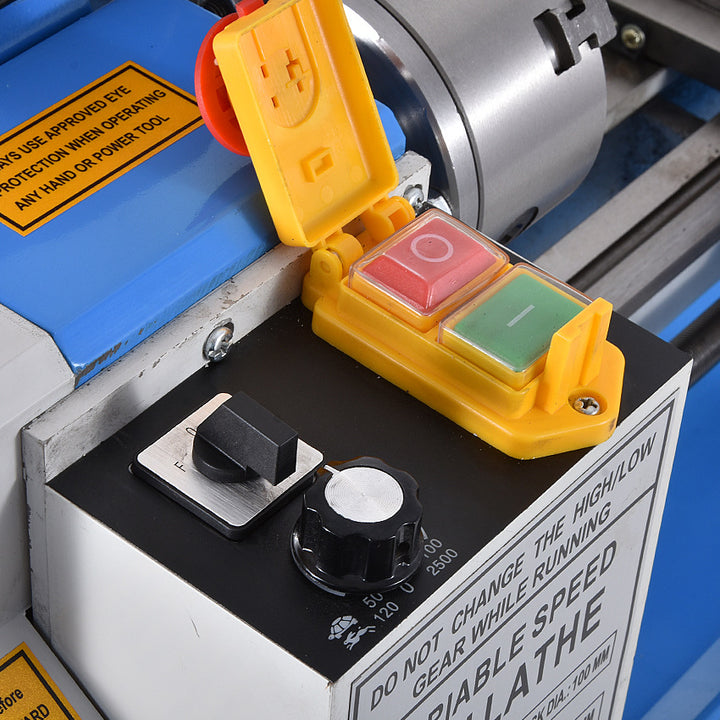

- Infinitely Variable Speeds: Revolving Speed Range: 50-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.

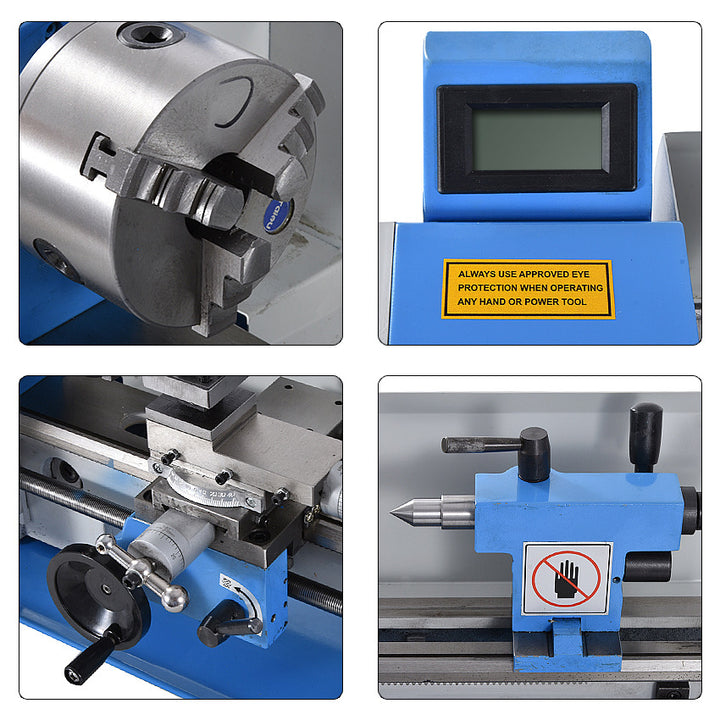

- Works with Precision: Spindle Bore: 21/32 mm. The metal working lathe is pre-installed with a 3-jaw chuck, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.
- Stable & Reliable Operation: Swing Over Bed: 8.3"; Swing Over Cross Slide: 28.3". The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
- Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
