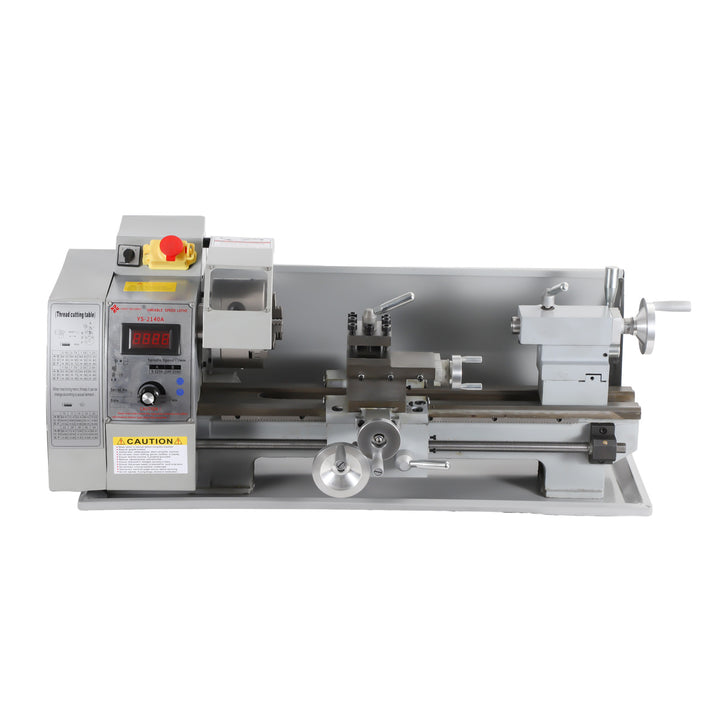

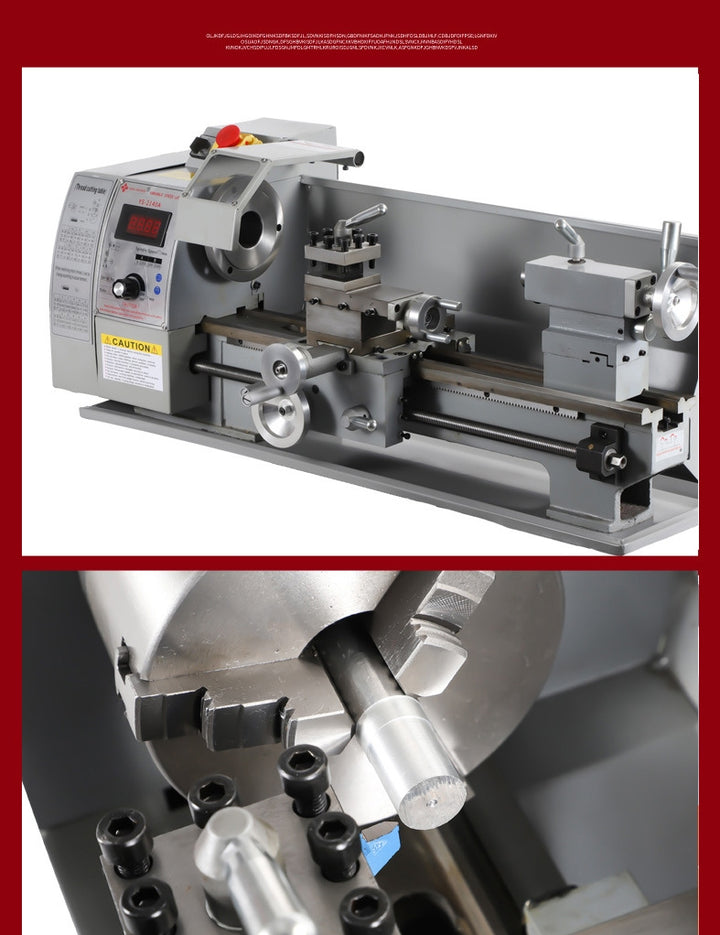

Metal Lathe, Mini Lathe Machine, 2500 RPM Variable Speed Change, 750W Precision Mini Lathe, Metal Working Lathe with Brushless Motor, Milling Machine for Various Metal Turning

$1,000.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Description

Product Specifications：

Model: YS-2140

Swing over bed: 210 mm

Knife holder rotation diameter: 110 mm

Distance between centers : 400 mm

Bed width: 100 mm

Chuck diameter: 125 mm

Spindle aperture: 38 mm

Spindle taper: MT5

Number of gear changes: Stepless gear changes

Speed range: 0-1250 RPM/100-2500 RPM

Knife holder workstation: 4 way

Knife holder trailer travel: 80 mm

Maximum Cross Slide Travel : 80 mm

Maximum Carriage Travel : 370 mm

Tail frame sleeve travel: 50 mm

Tail frame taper: MT2

Motor: Brushed 750 W, 110 V/220 V

Product dimensions: 875*340*345 mm

Package dimensions: 940*490*510 mm

Net weight: 58.2 kg

Features & Details

  • Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 750W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.
  • Infinitely Variable Speeds: Revolving Speed Range: 0-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.

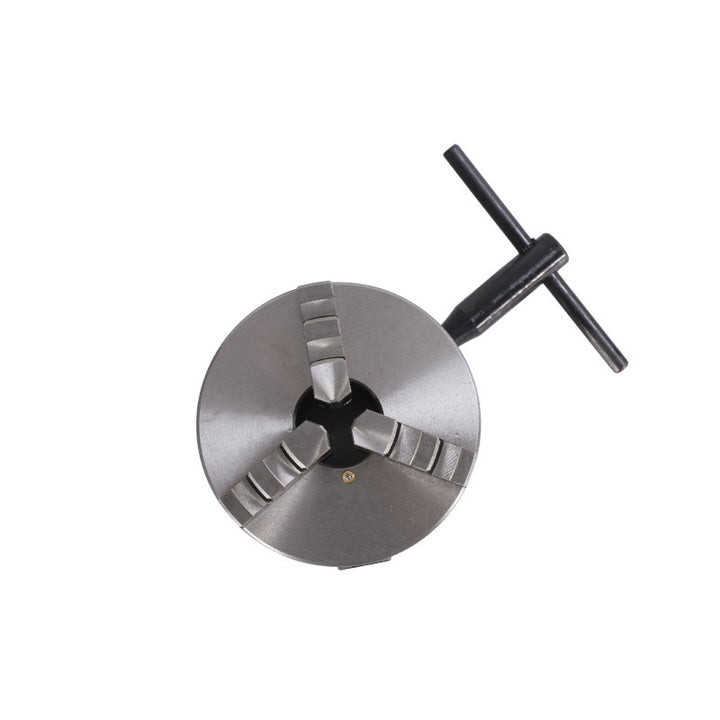

  • Works with Precision: Spindle Bore: 1.5"/38 mm. The metal working lathe is pre-installed with a 3-jaw chuck, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.

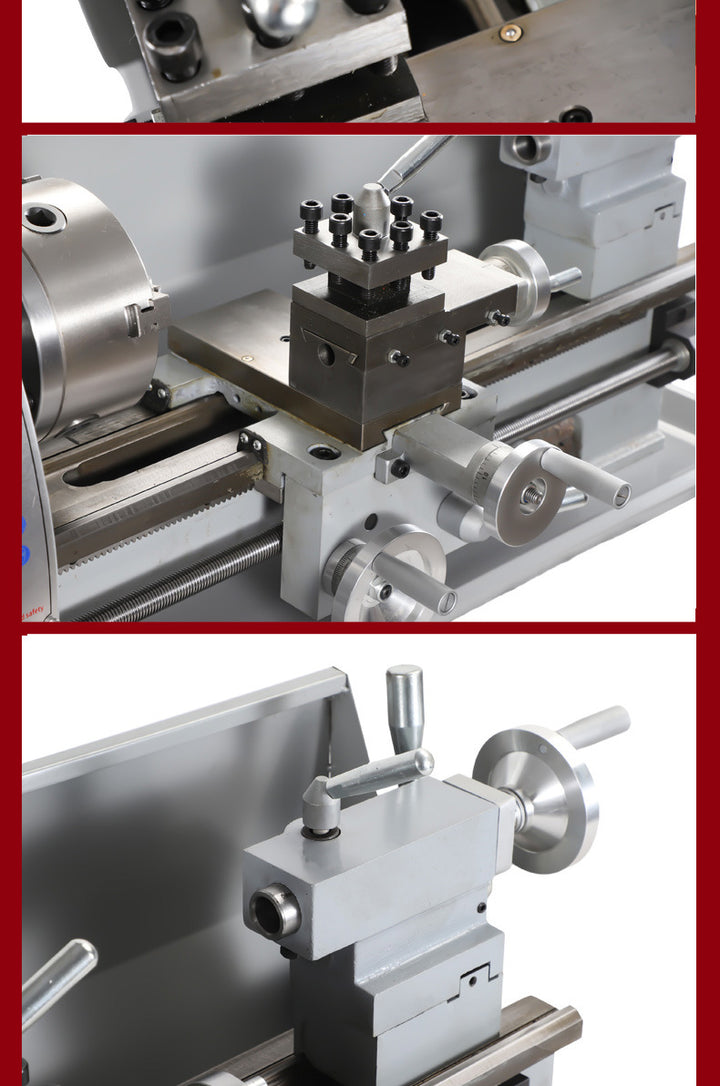

  •  Stable & Reliable Operation: Swing Over Bed: 8.3"; Swing Over Cross Slide: 28.3". The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
  • Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
