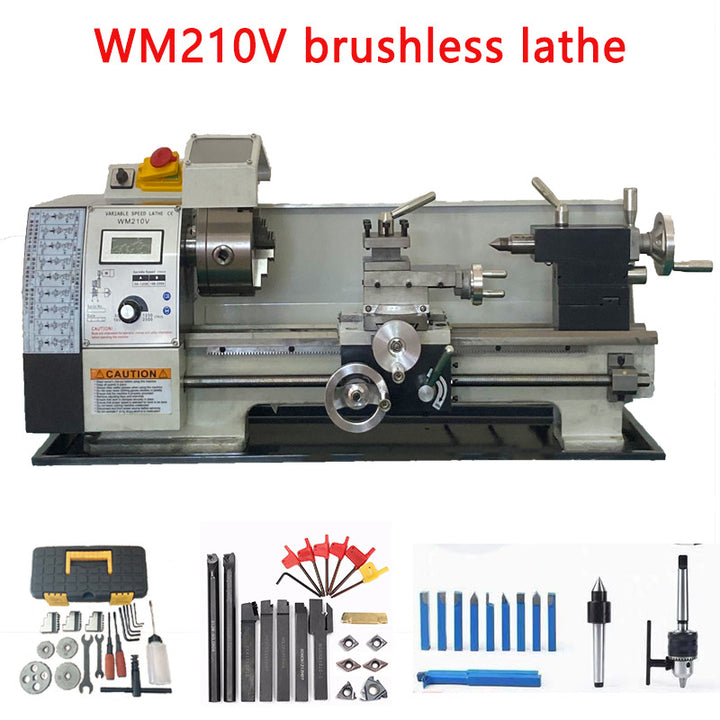

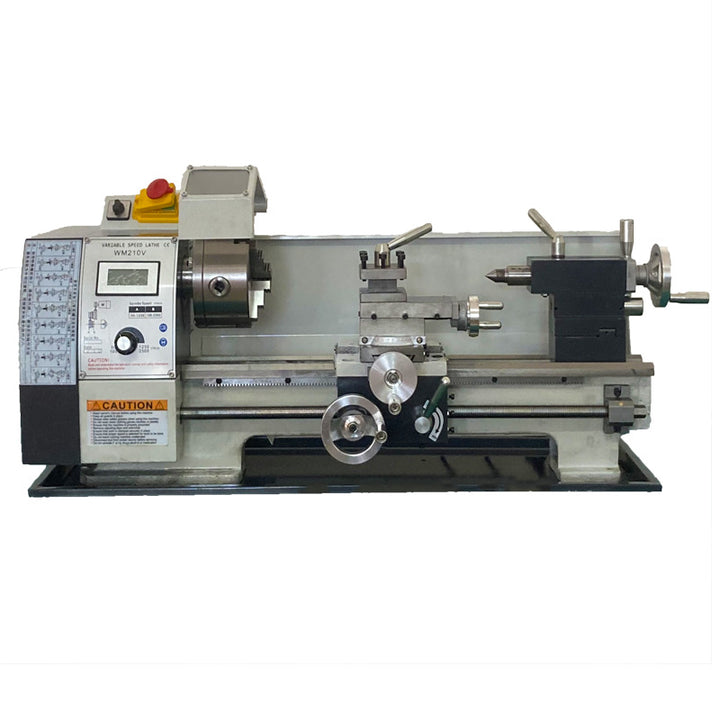

Metal Lathe,Precision Bench Top Mini Metal Lathe 900W, Metal Lathe Variable Speed 50-2500 RPM Nylon Gear With A Movable Lamp for Precision Parts Processing

$1,080.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Description

Product Specifications：

Model: WM210V400

Dimensions of the lathe: 840 * 390 * 370 mm

Packaging dimensions:  910 * 490 * 470 mm

Accuracy : 0.01-0. 05 mm

Weight: 70 kg

Motor power: Brushless motor 900 W

Distance between centers : 400 mm

Voltage: 220 V

Swing Over Bed : 210 mm

Chuck diameter: 125 mm

Large pallet travel: 285 mm

Spindle through-hole: 38 mm

Middle pallet travel: 75 mm

Speed regulation method: infinite speed regulation

Tail socket travel: 60 mm

Spindle speed: 50-2500 RPM

Tail socket taper: Mohs No.2

Thread range: metric 0.5-3.0 imperial 10-44T. P.L (imperial gears need to be purchased separately)

Features & Details

  • Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 900W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.
  •  Infinitely Variable Speeds: Revolving Speed Range: 50-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
  • Works with Precision: Spindle Bore: 38 mm. The metal working lathe is pre-installed with a 3-jaw chuck, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.
  • Stable & Reliable Operation: Swing Over Bed: 210 mm; Swing Over Cross Slide: 400 mm. The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
  • Adjustable Tailstock: Taper in Tailstock Spindle: Mohs No.2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
